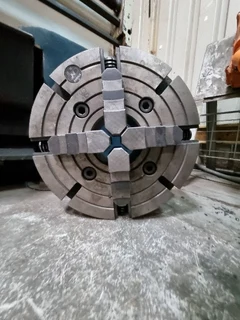

Saxon Conventional Lathe
Contact f/price
5 Photo(s)
1 month ago122 views
Ad Saved to My List
View and manage your saved ads in your account.
Share
WhatsApp
Facebook
Messenger
Twitter
Copy URL
Email
Report Ad
Report This Ad
Reason for Reporting
Email Address
(Required)
Message
(Optional)
Report Ad
By clicking "Report" you accept the Gumtree Terms and Conditions.
Description
Model C6266A1 x 3000
Specifications
Basic Specifications
Make & model Saxon C6266A1
Distance between centers: 2000 mm
Swing over bed: Ø 660 mm
Spindle bore: Ø 105mm
Spindle head joining style: D1-8
Spindle-reducing bush taper: Ø 113 mm (1:20)/ MT5
Spindle speed grade: 25 – 1600 rpm
Travel of tailstock sleeve: 235 mm
Diameter of tailstock sleeve: Ø 90 mm
Inside taper of tailstock sleeve : MT5
Power of the main motor: 7.5 kW (10PH)
Power of the cooling pump: 0.09 kW (1/8HP)
Machine dimensions (L x W x H)3660 x 1200 x 1600 mm
Machine weight 3590 kg
